A:Product  Introduction:

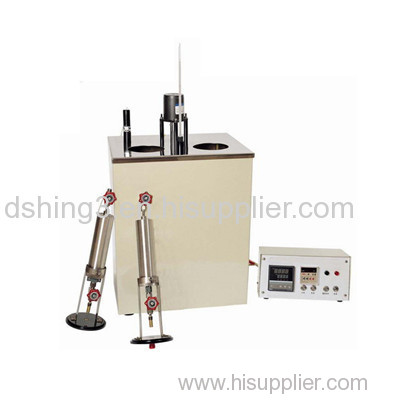

   DSHD-0232 Liquified Petroleum Gas(LPG) Copper Strip Corrosion Tester is designed according industrial standard of People's Republic of China SH/T0232 Test Method for Copper Strip Corrosion of Liquid Petroleum Gas.

   DSHD-0232 Liquified Petroleum Gas(LPG) Copper Strip Corrosion Tester is applies to determine the corrosion of liquefied petroleum gas to copper strip.

B: Main technical specifications and parameters:
  1. Power supply:  AC220V±10%  50Hz
  2. Temperature controlling range: room temperature-100.0°C
  3. Temperature controlling accuracy: ±0.5°C
  4. Temperature sensor: Pt100
  5. Heating power:Two parts,heating power of temperature control is 600W, auxiliary heating power is1000W
  6.Rotation speed of stirring motor:1400r/min
  7. Time-delay range:0.01s - 99h 99min
  8. Sample hole:  2 holes
  9. Ambient temperature: -10°C~35°C
  10. Relative humidity: no more than 85%
  11. Total power consumption: no more than 1700 W
