A:Brief description:

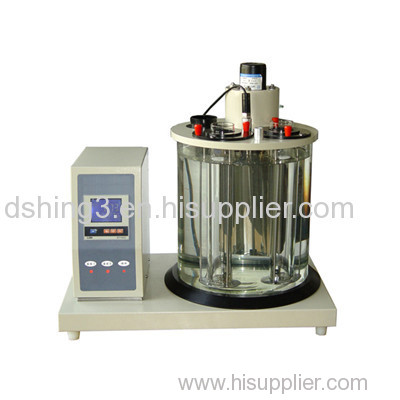

DSHD-1884 Petroleum Products Density Tester is designed according the national standard of People's Republic of China GB/T1884 Test Methods for Density of Petroleum Oils and Liquid Petroleum Products (Density Meter Method).

    DSHD-1884 Petroleum Products Density Tester is applied to determine the density of crude petroleum and liquid petroleum products.

B:Main technical specifications and parameters
  1. Power supply: AC 220V±10%, 50 Hz
  2. Bath cubage: diameter 300 mm×340 mm
  3. Test tube: 500 ml,1000ml(1000ml need to be customized)
  4. Heating power: 700 W, 1000 W
  5. Temperature controller:
  (1) Temperature controlling range: 0 °C-100 °C
  (2) Temperature controlling accuracy: ±0.2 °C
  (3) Temperature sensor: Industrial platinum resistance; its scale number is Pt100
  6. Thermometer: It is a total immersed mercury thermometer having scale division   of 0.2 °C
  7. Ambient temperature: -10 °C-+40 °C, Temperature fluctuation no more than  2 °C
  8. Relative humidity: no more than 85%
